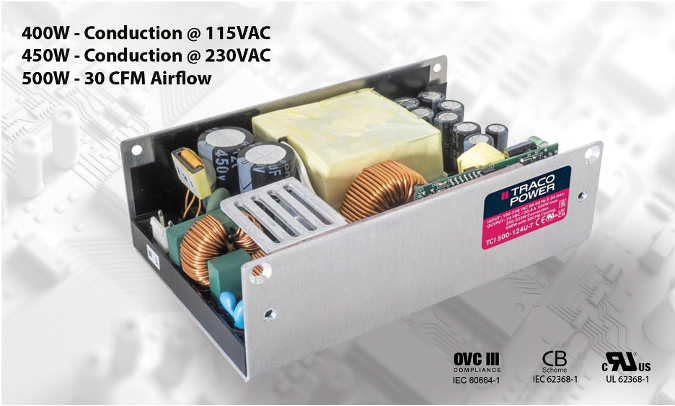

TRACO POWER releases their new TCI 500U series of power supplies rated up to 450W @ 230 VAC and 400W @ 115VAC conduction-cooled operation and 500W with 30 CFM airflow. This series was designed to support applications where forced air cooling is not desired or not available. Available in a compact 3.3 x 5.2 x 1.6” U-frame package, please see the TCI 500 series with a top-mounted fan if 500W is required.
The TCI 500U series consists of 3 single output models with 12, 24, or 48 VDC outputs and are designed to maximize efficiency and thermal performance. Up to 92% efficiency allows 400W conduction-cooled operation from -20 to +45°C (see app note for operation up to +80°C) and 500W output with airflow. Active power factor correction, internal EN 55032 class B filter (radiated & conducted), 4250 VAC reinforced isolation, and over-voltage (OVC III) compliance. Features include 5VDC standby & 12VDC auxiliary outputs, Power Good, Remote On/Off, and remote Sense for system interface, making the new TCI 500U ideal for instrumentation, industrial, ITE, and IoT applications around the globe. Features include:
- High Density 3.3 x 5.2 x 1.6” U-Frame Conduction-Cooled Package
- Operating temperature range -30°C to +80°C
- I/O reinforced isolation 4250 VAC
- Over voltage category (OVC III)
- High efficiency up to 92%
- Internal EN 55032 class B filter (radiated & conducted)
- IEC/EN/UL 62368-1 approved
- 3-year product warranty
The new TCI 500U models are in stock now and available through TRACO POWER’s global distribution network.
