Two new Automotive grade AEC-Q100 I Q Smart load switch ICs, the AEC-Q100-qualified GLF1111Q and GLF1200Q, are rated for a wide temperature range (Grade 1 -40 to +125°C). The GLF1111Q provides industry-leading, battery-saving leakage current (2nA, typ.).

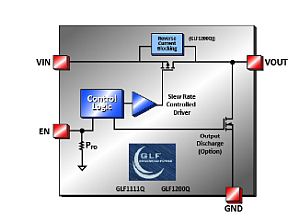

The GLF1200Q features a true reverse-current blocking, which prevents a backup power source from being discharged when an input node is shorted. The GLF1200Q works all of the time regardless of on or off state. Applications for the GLF1111Q and GLF1200Q include infotainment and cluster display systems, diagnostic systems, passive entry/start systems (PEPS), customer premise equipment (CPE), face recognition systems and intelligent cockpit and autonomous driving applications.

Both the GLF1111Q and GLF1200Q I Q Smart devices, packaged in a SOT-23-5L, offer easy visual inspection of solder joints. Both the GLF1111Q and GLF1200Q feature integrated slew-rate control that limit inrush upon turn on, therefore minimizing the effects of voltage droop. Each load switch IC supports a wide-input voltage range (1.5V to 5.5V), meaning a single device can be used in a variety of voltage rail applications, which helps to simplify inventory management. And both are offered with an optional output discharge switch.

“We have added two new devices to our I Q Smart™ family to offer high performance in more applications,” said Eileen Sun, President, and CEO at GLF Integrated Power. “The GLF1111Q and GLF1200Q address the ever-expanding, evolving range of automotive electronic systems that require a high-performance load switch with a wide-ambient operating temperature range to assure reliable, long-term operations.”

Price: $0.24 (in OEM quantities); Lead Time: 8 weeks (ARO)

GLF integrated Power, 4500 Great America Pkwy #1045, Santa Clara, CA 95054, (408) 239-4326, www.glfipower.com/
