USB AC Adapter/Power Supply Certified to ANSI/AAMI ES60601-1 for the United States and Canada and EN/IEC 60601-1, 3rd edition for Europe, Asia, and Africa and is rated up to 6W output with 5-6V output options. Model Series WR9QA1000USBNMEDRVB GTM41078-0605-USB

Continuing to pursue its commitment to quality products and service, GlobTek, a world-class leader in the design and manufacture of power supplies and rechargeable energy systems, now has Intertek ETL certificates and reports for Medical (60601-1) power supply ac adapter series WR9QA1000USBNMEDRVB GTM41078-0605-USB Series to latest North American national standard ANSI/AAMI ES60601-1 (3rd Edition). Specifically ANSI/AAMI ES60601-1 Issued: 2006/03/09: 2005 Version (R2012) with AMD C1: 2009, AMD C2: 2010 & CAN/CSA-C22.2 No.60601-1 Issued: 2008/02/01; with COR 2:2011/06/01). The model is also CB and Semko certified to IEC 60601-1: 2005 + CORR. 1 (2006) + CORR. 2 (2007) and group and national differences for the CENELEC countries. The unit is CE Mark Certified to EN 60601-1-2:2007, EN 55022:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008, and EN 55024:2010. Intertek ETL Certification, recognized by the OSHA Nationally Recognized Testing Laboratory (NRTL) Program, is required for demonstrating compliance to UL standards for switching power supplies. The unit is certified 2MOPP. 2MOPP (means of patient protection) refers to two independent systems of insulation protecting the patient from dangerous voltages. A single insulating component can get this rating based on extensive testing. 2MOPP certifications exceeds the requirements of 2MOOP and this unit may be used for either application.

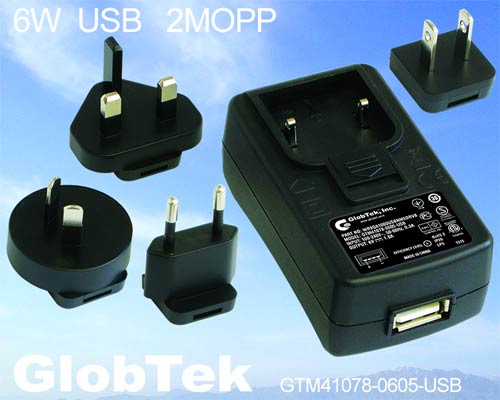

The miniature medically rated universal input switching power supply model WR9QA1000USBNMEDRVB GTM41078-0605-USB is available in Class II, 2 Prong, interchangeable blade configurations. GlobTek’s changeable input blade system has individual field replaceable input plugs for North America/Japan, Europe, United Kingdom, Australia and New Zealand, China, Korea, Argentina, India, Brazil, and also an IEC320 type configuration.

Medical grade (60601-1 certified) power supply has an input from 90-264VAC 50-60Hz and a factory configurable output of 5VDC to 6VDC output with a max power of 6W continuous output. This product complies with North American Energy Star, Canadian NRCAN, EISA, EuP, and other worldwide requirements for Level V efficiency compliance and is produced in an ISO13485 certified facility.

This family features Regulated output with very low ripple, built-in over current, short circuit, over current, and thermal protection as well as low leakage, low ripple, and high efficiency. The product is suitable for most applications requiring DC power and common applications include medical devices, portable medical treatment and monitoring equipment and instruments, Hospital equipment and fixtures, equipment, and as a power source for Li-Ion battery chargers. The unit has a standard USB type A connector and standard or custom USB cables may be ordered as required by customers.

Customized enclosure colors, housing designs, output cord types and lengths, as well as customized packaging available upon request. Contact GlobTek to specify an off the shelf, modified, or completely custom intelligent or smart charging solution or multiple bay charger.

The power supply can be supplied with customer designated output plugs, many of which are stocked at GlobTek New Jersey USA and Suzhou China locations.

The power supplies comply with IEC 60950-1 2nd edition or IEC60601-1 3rd edition and have certifications by UL (North America), C-Tick (Australia/New Zealand), Iram (Argentina), BSMI (Taiwan), CB (Worldwide), CCC (China), Demko (Europe), eK (Korea), NRCAN (Canada), Spring (Singapore), SIQ (Europe), Gost (Russia), Singapore (PSB), and UkrSEPRO (Ukraine). They also comply with Canadian Nrcan efficiency requirements as well as FCC/VCC/CE emc requirements.
